Pool 2d 2D DWG Block for AutoCAD

Pool 2d 2D DWG Block for AutoCAD

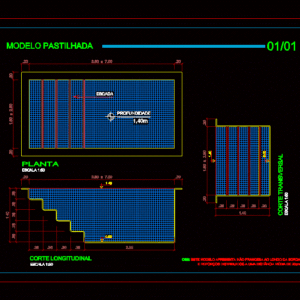

Drawing 2D in plant and view

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

depth, ladder, scale, plant, scale, longitudinal cut, scale, cross section, obs: this model presents French hand along the rim distributed reinforcements an average distance of, pasted model

Raw text data extracted from CAD file:

\A1;.20 \A1;1.80 a 2.80 \A1;.20 \A1;.20 \A1;3.80 a 7.00 \A1;.20 \A1;3.80 a 7.00 \A1;1.80 a 2.80 \A1;.28 \A1;.28 \A1;.28 \A1;.28 \A1;.28 \A1;1.40 \A1;.36 \A1;.36 \A1;.36 \A1;.36 \A1;2.35 \A1;.20 \A1;.20 \A1;.28 \A1;.28 \A1;.28 \A1;.28 \A1;.28 \A1;1.40 \A1;.20 \A1;.20 5 <> a 2.80 5 5 <> a 7.00 5 <> a 7.00 <> a 2.80 0.00 1.40 0.00 1.40 1,40m PROFUNDIDADE ESCADA 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 ESCALA 1:50 PLANTA ESCALA 1:50 CORTE LONGITUDINAL ESCALA 1:50 CORTE TRANSVERSAL 01/01 OBS: ESTE MODELO APRESENTA MÃO FRANCESA AO LONGO DA BORDA E REFORÇOS DISTRIBUIDOS A UMA DISTÂNCIA MÉDIA DE 20cm MODELO PASTILHADA 5 5
