Project Half Pressure DWG Full Project for AutoCAD

Project Half Pressure DWG Full Project for AutoCAD

Feeding through two gas stagnate of 4.000lts

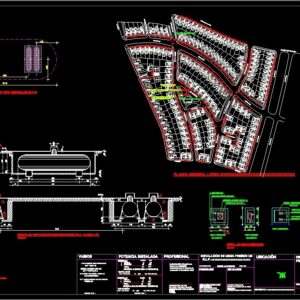

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

gac, gac, gac, gac, gac, lts., reg. iet.rego mn, location underground ponds, average pressure pipe, date sans, drawing: i.s.m., pipe type, statement no., Location, sans type, professional, the installation complies with all the requirements stipulated in the economy decree nº of the year, xxxxxxxxxxxx, mauricio vera del rio ins.sec no. address class luis cruz martinez temuco., xxxxxxxxxxxxxxxxxxxxxx xxxxxxxxxxxxx rut: xxxxxxxxxxxxxx r.l .: xxxxxxxxxxxxxxxxx rut: xxxxxxxxxxxxxx, xxxxxxxxxxxxxxxxx ins.sec nº xxxxxxxxxx class x. address xxxxxxxxxxxxxxxxxxxxxxxxxx, pigeon sector, medium pressure installation of g.l.p. xxxxxxxxxxxxxxxxxxxxxxxxx, xxx hyundai meters, chap:, xxx reg.ii et.rego, various, pipe type, installed potency, reg.i et.rego mn, chap:, underground ponds, cap: lts., central type iii without: esc, Similary., total, kitchen, calefont, pit: xxxx, pct: xxxx, fs:, central iv xx, installation, total, kitchen, calefont, central iii xx, installation, dosage foundation, hook anchor, n.t.n., steel piola lined in plastic, sand compacted lepanto, metal grate protection, n.t.n., n.t.n., underground tanks chap., metal, lower, ventilation, higher, ventilation, niche door meter, front view, sectional, profile view, sectional, actaris meter, pipe type, reg.iiet.fisher, stopcock, front view, niche, general loteo, the maticos, Andalusia, av. southern, pje Barcelona, street barcelona, the maticos, door of valencia, alcalá de henares, street barcelona, pje Jerez de la Frontera, pailahuen, pje alcalá de henares, pje fuenteovejuna, pje Barcelona, av. southern, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, the maticos, gac, green area, pje cantabria, gac, gac, pje Castile, reg.iet.rego mn, central iii, central iv, av. southern, door of valencia, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, sectorization valves, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, gac, lts., location underground ponds, sectorization valves, actaris meter, reg.iiet.fisher, north, fs:, pct: xxxx, pit: xxxx

Raw text data extracted from CAD file:

GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A CAP.4000 LTS. REG. IET.REGO 1584 MN CAP.1700 Mcal/hr UBICACION ESTANQUES SUBTERRANEOS 20.10 8.00 4.00 4.00 4.00 4.00 8.00 20.10 8.00 4.00 4.00 4.00 4.00 8.00 CAÑERIA MEDIA PRESIÒN \LSIMBOLOGIA FECHA : \fComic Sans MS|b0|i0|c0|p66; \H0.6x; \Ftxt.shx|c0;\H0.8333x; DIBUJO:I.S.M. \fArial|b0|i0|c0|p34;\H0.5554x; TUBERIA TIPO L ESC.1:750 DECLARACIÒN Y PROYECTO Nº UBICACIÒN TIPO II\H0.8x; \fComic Sans MS|b0|i0|c0|p66; REFERENCIA:\H1.2x; \H0.6667x;xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx PROFESIONAL La instalaciòn Cumple con todos los requisitos estipulados en el decreto de economìa nº 29 del año 1986. \LPROPIETARIO XXXXXXXXXXXX MAURICIO VERA DEL RIO INS.SEC Nº 12.016.340-K CLASE 1. DIRECCIÒN : LUIS CRUZ MARTINEZ Nº02189 TEMUCO. XXXXXXXXXXXXXXXXXXXXXX XXXXXXXXXXXXX RUT: XXXXXXXXXXXXXX R.L.: XXXXXXXXXXXXXXXXX RUT: XXXXXXXXXXXXXX XXXXXXXXXXXXXXXXX INS.SEC Nº XXXXXXXXXX CLASE X. DIRECCIÒN : XXXXXXXXXXXXXXXXXXXXXXXXXX \LINSTALADOR SECTOR LA PALOMA S/N INSTALACIÒN DE MEDIA PRESION DE G.L.P. xxxxxxxxxxxxxxxxxxxxxxxxx XXX MEDIDORES HYUNDAI DSG-3R CAP: 230 Mcal/Hrs XXX REG.II ET.REGO LV4403 B4 VARIOS TUBERIA TIPO L POTENCIA INSTALADA 2 REG.I ET.REGO 1584 MN CAP: 1700 Mcal/Hrs 4 ESTANQUES SUBTERRANEOS CAP: 4000 LTS. \LEMPLAZAMIENTO TIPO CENTRALES III Y IV\H0.75x;\l SIN:ESC O SIMILAR. Mcal/hr Kw TOTAL COCINA 1 8 9.3 CALEFONT 1 20 23.2 Pit: XXXX Mcal/hr Pct: XXXX Mcal/hr Fs: 0,16 28 32.5 CENTRAL IV (ABASTECE XX VIVIENDAS) INSTALACIÒN Mcal/hr Kw TOTAL COCINA 1 8 9.3 CALEFONT 2 20 46.4 48 55.7 CENTRAL III (ABASTECE XX VIVIENDAS) INSTALACIÒN \LCENTRAL II \LCENTRAL I \LMODIFICACIONES 20 20 40 116 40 20 FUNDACION - DOSIFICACION 250 Kg/CEM/M GANCHO DE ANCLAJE DE 7X3/4" 20 160 20 105 20 125 20 15 35 N.T.N. 5 4 3 2 1 508 116 40 3 PIOLA DE ACERO FORRADA EN PLASTICO O 1/4" ARENA LEPANTO COMPACTADA REJA METALICA DE PROTECCION 50 2 1 3 4 5 N.T.N. 145 125 N.T.N. 20 105 15 20 30 105 20 8.00 390 480 290 40 20 105 30 40 20 116 508 50 20 40 116 40 20 20 5 4 3 2 1 5 20 40 30 35 60 5 20 \LPERFIL. \LELEVACION. \LMONTAJE: ESTANQUES SUBTERRANEOS CAP. 4x4000 LTS.\l \H0.75x;SIN/ESC METALICA INFERIOR 200 CM2 VENTILACION SUPERIOR 200 CM2 VENTILACION PUERTA NICHO MEDIDOR VISTA FRONTAL EN CORTE VISTA PERFIL EN CORTE 80 80 500 80 340 260 660 80 660 500 MEDIDOR ACTARIS 1000 G 1.6 CAÑERIA DE CU TIPO L 80 REG.IIET.FISHER R522-BCF LLAVE DE PASO VISTA FRONTAL \LDETALLE NICHO MEDIDOR\H1.25x; \fArial|b0|i0|c0|p34;\H0.5x;\lESC 1:20 \LPLANTA GENERAL LOTEO XXXXXXXXXXXXXXXXXXXXXXXXXXXXXXXX\H0.25x;\l LOS MATICOS ANDALUCÍA ANDALUCÍA AV. AUSTRAL PJE. BARCELONA PJE. BARCELONA CALLE BARCELONA LOS MATICOS PUERTA DE VALENCIA ALCALÁ DE HENARES CALLE BARCELONA PJE. JEREZ DE LA FRONTERA PAILAHUEN PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PJE. ALCALÁ DE HENARES PJE. FUENTEOVEJUNA PJE. BARCELONA AV. AUSTRAL GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A LOS MATICOS GAC 21.A PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D AREA VERDE 1 21.A PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PJE CANTABRIA PG 53.D GAC-06.a GAC-06.a GAC-06.a PG 53.D PG 53.D 53.D PG GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a GAC-06.a PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D PG 53.D GAC 21.A GAC 21.A PJE. CASTILLA CAP.1700 Mcal/hr REG.IET.REGO 1584 MN 1 CENTRAL III 1 CENTRAL IV PG 53.D PG 53.D AV. AUSTRAL AV. AUSTRAL PUERTA DE VALENCIA GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A VALVULAS DE SECTORIZACION 2 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 71 70 73 74 75 76 77 86 85 84 83 82 81 80 79 78 10 87 88 89 90 91 92 94 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 74 73 72 71 70 69 68 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 96 11 10 79 90 91 92 93 94 89 88 87 86 85 84 83 82 81 80 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 75 76 77 78 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC 21.A GAC CAP.4000 LTS. UBICACION ESTANQUES SUBTERRANEOS VALVULAS DE SECTORIZACION 3 4 5 6 7 8 9 9 8 7 6 5 4 3 2 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 MEDIDOR ACTARIS 1000 G 1.6 REG.IIET.FISHER R522-BCF 1" 3/4" 3/4" 3/4" 3/4" 1/2" 1/2" 1/2" 1/2" 3/8" 3/8" 3/8" 3/8" 1/2" 1/2" 1/2" 1/2" 3/4" 3/4" 3/4" 3/4" 3/4" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/4" 3/4" 3/4" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/4" 3/4" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 3/4" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 1/2" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 3/8" 20.10 8.00 4.00 4.00 4.00 4.00 8.00 Norte E S O 3/4" 3/4" 72 3/8" 93 \LPLOTEO 10:1 Nº50 Y 72 : 0.5 ROJO:0.2 AMARILLO:0.18 VERDE:0.1 BLCO:0 MAGENTA:0.35 Nº8:0.1 RESTO:0.2 Fs: 0,16 Pct: XXXX Mcal/hr Pit: XXXX Mcal/hr
