Recreational Center With Facades And Dimensions 2D DWG Design Section for AutoCAD
ADVERTISEMENT
ADVERTISEMENT

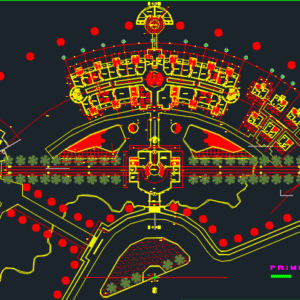

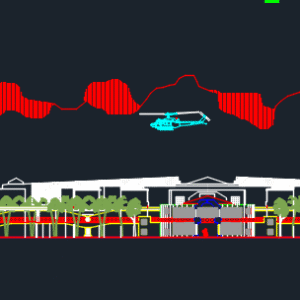

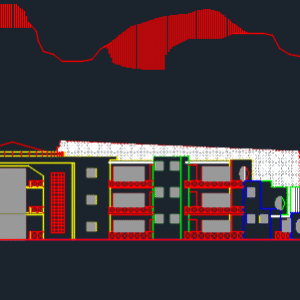

This is the design of a recreational center that has reception, central communications, administration, tourist orientation, bar, dining room, kitchen, double bedrooms, simple bedrooms with their respective bathroom, beauty salon, shops, and service rooms. This design includes floor plans, plants, sections, facades, dimensions and appointments.
| Language | Spanish |
| Drawing Type | Section |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
       |
| File Type | dwg, zip |
| Materials | Concrete, Steel |
| Measurement Units | Metric |
| Footprint Area | Over 5000 m² (53819.5 ft²) |
| Building Features | |
| Tags | 2d, administration, appointments, autocad, BAR, bathroom, beauty salon, bedrooms, center, del, Design, dimensions, Dining room, DWG, facades, Hotel, inn, kitchen, plants, RECEPTION, recreation center, recreational, recreational center, resort, section, sections, shops, tourist resort, villa |
