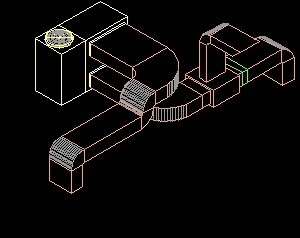

Roof Top – Ducting DWG Block for AutoCAD

Roof Top – Ducting DWG Block for AutoCAD

roof top – duct

Drawing labels, details, and other text information extracted from the CAD file (Translated from Italian):

with underlying attack, mix plenum between air outside air, for the resumption of the latter, external grille for grid connection, anti-vandalized anti-vibration damper, of the, above the delivery channel of the, under blend air mixing channel, of hill regulation

Raw text data extracted from CAD file:

500x300 ricircolo, con sottostante l'attacco (650x300) Plenum di miscela tra aria esterna e aria di per la ripresa di quest'ultima 500x400 1000 mc/h Griglia di presa aria esterna co rete antivolatile e antitopo con serranda 500x300 850x300 del ROOF-TOP Sopra canale di mandata del ROOF-TOP Sotto canale di ripresa dell'aria di miscela di regolazione a monte

Language	N/A
Drawing Type	Block
Category	Climate Conditioning
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	air conditioning, air conditionné, ar condicionado, autocad, block, duct, ducting, DWG, klimaanlage, roof, top
