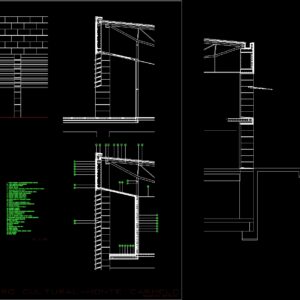

Section By Facade DWG Section for AutoCAD

Section By Facade DWG Section for AutoCAD

Finish touch of roof with granite badges over morter – Technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Galician):

covered finish Crushed granite on mortar, copper plate shaped on wooden board, straps, union articulated cercha, stalk amount tube, diagonal search tube, sheet made of galvanized steel, trimmed anchorage, perforated brick wall, ready-made wood finish, finished wood board, insulation fiberglass, Thermosol polystyrene extruded insulator, top strings fence. tube, elastic joint support cover, pavement support, granite slab, granite paving, carmelo center, agustin arteta, mallazo, reinforced concrete jacarand, anodized aluminum slats, waterproofing membrane, concrete of earrings, slab of reinforced concrete in situ, carpinteria sujeccion slats in anodized aluminum, asphalt cloth, Thermosol polystyrene extruded insulator, stirrings each, tube, union supported fence through chisel, sandwich plate, profile, false ceiling

Raw text data extracted from CAD file:

REMATE CUBIERTA. APLACADO GRANITO SOBRE MORTERO 2. 1. 5. 4. 3. CHAPA DE COBRE CONFORMADA e=45mm SOBRE TABLERO DE MADERA CORREAS HEB-100 UNION ARTICULADA CERCHA 8. 7. MONTANTE CERCHA. TUBO 80x60x4 10. 9. DIAGONAL CERCHA. TUBO 40x40x4 CHAPA CONFORMADA EN ACERO GALVANIZADO e=45mm 13. 12. 16. 15. 14. ANCLAJE APLACADO PARED DE LADRILLO PERFORADO e=14cm HEB-180 LISTON MADERA 3x4 SUJECCION ACABADO ACABADO TABLERO MADERA e=1cm 11. 6. AISLAMIENTO FIBRA DE VIDRIO AISLANTE TERMICO POLIESTIRENO ESTRUSIONADO CORDON SUPERIOR CERCHA. TUBO 120x80x6 JUNTA ELASTICA APOYO CUBIERTA 18. 17. 19. SOPORTE PAVIMENTO APLACADO DE GRANITO 49x100x3 PAVIMENTO GRANITO 17 15 26 27 16 11 13 15 14 16 12 17 5 6 7 8 9 10 3 4 1 2 25 24 19 18 23 22 21 20 34 31 32 28 30 29 33 CENTRO CULTURAL-MONTE CARMELO AGUSTIN ARTETA MALLAZO 1d10C/20 JACENA DE HORMIGON ARMADO 6d12mm 29. 27. 28. LAMAS DE ALUMINIO ANODIZADO 21. MEMBRANA IMPERMEABILIZANTE HORMIGON DE PENDIENTES LOSA DE HORMIGON ARMADO IN SITU e=20cm CARPINTERIA SUJECCION LAMAS EN ALUMINIO ANODIZADO TELA ASFALTICA 24. 25. 26. 22. 23. AISLANTE TERMICO POLIESTIRENO ESTRUSIONADO 20. 35 20. ESTRIBOS d6mm CADA 30cm 33. 32. 35. 34. TUBO 160x80x4 UNION APOYADA CERCHA MEDIANTE COLISO CHAPA SANDWICH PERFIL HEB-120 31. FALSO TECHO E: 1/20

Language	N/A
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Steel, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, badges, construction details section, cut construction details, DWG, facade, finish, Granite, roof, section, specifications, technical
