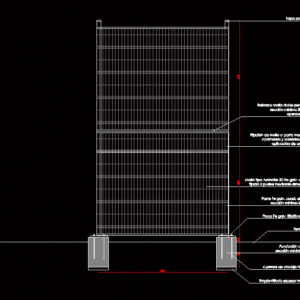

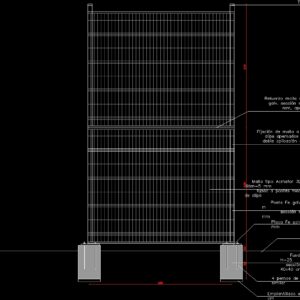

Siding Multicancha 3D DWG Section for AutoCAD

Closing multicourt; Isolated H Foundation – 25 Min section 40×40 cm framed Fe Poste minimum section 100x100x2 mm galvanized mesh type and 3D Acmafor Fe 5mm diameter galvanized poles attached to system using clips

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

natural terrain, mesh to pole fixation with bolted and welded clips, with double application of anticorrosive., pvc pole cover

Raw text data extracted from CAD file:

2,10 2,55 0,1 0,5 2,00 4 pernos de anclaje HILTI o similar \W3.28132; Fundación aislada \W3.28132; H-25 \W1.83750; sección mínima 40x40 \W1.83750; cm Emplantillado espesor mínimo 5 cm Terreno natural Placa Fe galv. 30x30 mm e=5 mm \W2.93272; Poste Fe galv. cuad. altura 4,10 \W2.93272; m \W6.50714; sección mínima 80x80x3 \W6.50714; mm \W2.53772; Malla tipo Acmafor 3D Fe galv. \W2.53772; diám=5 mm \W4.15236; fijada a postes mediante sistema \W4.15236; de clips Fijación de malla a poste mediante clips apernados y soldados, con doble aplicación de anticorrosivo. Refuerzo malla doble perfil L Fe galv. sección mínima 50x50x3 mm, apernado a postes Tapa poste de PVC 5 5 2,00 2,10 5

Language	Spanish
Drawing Type	Section
Category	Entertainment, Leisure & Sports
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, basquetball, closing, cm, court, DWG, enclosure, fe, feld, field, football, FOUNDATION, framed, golf, isolated, poste, section, siding, sport, sports center, tennis, voleyball
