Structure Of A Home DWG Full Project for AutoCAD

Structure Of A Home DWG Full Project for AutoCAD

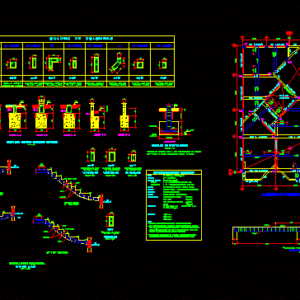

The project includes plans for laying of foundations; columns; footings and beams lightened plane

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

lightened first floor, garden, dining room, room, sh, kitchen, plant foundation, parking, nfp, type, column box, iron, stirrups, section, flat beams, brick, mortar, overburden, foundation, concrete cyclopean, steel, concrete, footings , overload, overlaps, note:, coatings, false floor, terrain, – the walls indicated in the lightened planes will be brick, king-kong, the walls not indicated in the lightened planes will be, after the stripping of the respective lightened. , – it is recommended to take care to control as much as possible any infiltration of water that disturbs the potential balance of the soil. – To fill the concrete of the columns between jagged walls, banked beams and columns, light and solid slabs, technical specifications, elevation, nfc, detail: cuts foundation, variable, detail of typical shoe, stair detail, all the shoes go to a depth no less, vac, vsc, ll ega, up, ladder, box, overlap joint, for beams and slabs, bending detail of stirrups, beam d, column d, coating, specified, spliced ​​on the supports according to:, in lightened and flat beams the lower reinforcement, upper reinforcement, lower reinforcement, any h, typical cut lightweight slab, union of beams

Raw text data extracted from CAD file:

s A \A1;.40 \A1;.80 \A1;.55 \A1;.15 \A1;.25 \A1;.15 \A1;.60 \A1;.15 \A1;.30 \A1;.40 \A1;.15 \A1;.40 \A1;.15 \A1;.30 \A1;.40 \A1;.60 \A1;.40 \A1;.15 \A1;.15 \A1;.250 \A1;.15 \A1;.35 \A1;.15 \A1;.40 \A1;.15 \A1;.15 \A1;.40 \A1;.55 \A1;.80 \A1;.50 \A1;.40 \A1;.80 \A1;VARIABLE \A1;.60 MIN. \A1;.075 \A1;.60 \A1;.10 \A1;.40 \A1;.80 \A1;.55 \A1;.25 \A1;.40 \A1;.55 \A1;.80 \A1;VARIABLE \A1;3.050 \A1;3.594 \A1;2.728 \A1;3.678 \A1;.030 \A1;3.070 \A1;2.485 \A1;2.335 \A1;.030 \A1;2.630 \A1;2.641 \A1;2.611 \A1;.030 \A1;4.091 \A1;3.678 \A1;.030 \A1;3.070 \A1;3.452 \A1;1.549 \A1;1.425 \A1;1.054 \A1;.25 \A1;.40 \A1;.80 \A1;1.20 \A1;.25 TIPICO .10 .90 .10 \A1;.25 TIPICO \A1;.25 TIPICO \A1;.25 TIPICO \A1;1.20 \A1;1.20 \A1;.80 \A1;1.20 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;.25 \A1;.25 \A1;.15 \A1;.20 \A1;.40 \A1;.25 \A1;.25 \A1;.15 \A1;.60 \A1;.40 \A1;.40 \A1;.15 \A1;.15 \A1;.40 \A1;.80 \A1;1.00 \A1;1.00 \A1;.80 \A1;1.00 \A1;.80 \A1;1.00 \A1;.80 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;1.00 \A1;.20 \A1;.25 \A1;.20 \A1;.20 \A1;.20 \A1;.15 \A1;.15 \A1;.30 \A1;.25 \A1;.20 \A1;.20 \A1;.25 \A1;.20 \A1;.20 \A1;.20 \A1;.15 \A1;.10 \A1;.15 \A1;.40 \A1;.20 \A1;.35 \A1;.20 \A1;.40 \A1;.90 \A1;1.10 \A1;.75 \A1;1.20 \A1;.30 \A1;1.00 \A1;.90 \A1;.90 \A1;.70 \A1;.20 \A1;.25 \A1;.030 \A1;3.050 \A1;3.594 \A1;2.728 \A1;3.678 \A1;2.485 \A1;2.335 \A1;.030 \A1;2.630 \A1;2.641 \A1;2.611 \A1;.030 \A1;4.091 \A1;3.678 \A1;.030 \A1;3.452 \A1;4.028 \A1;.50 .20 .25 3.65 .25 3.08 .25 1.20 1.62 \A1;L/3 \A1;m \A1;L/4 \A1;L/4 \A1;L/3 \A1;m \A1;L/4 \A1;L/3 \A1;L/4 \A1;0.30 \A1;0.10 \A1;0.10 \A1;0.15 \A1;0.20 \A1;0.05 \A1;d \A1;d \A1;d ALIGERADO PRIMER PISO 2° TRAMO 3° Y 5° TRAMO 4° Y 6° TRAMO 3 4 2 1 JARDIN NFP=-1.00 COMEDOR NFP=-0.20 NFP=-0.05 NFP=+0.10 JARDIN NFP=+0.55 SALA S.H. COCINA NFP=+0.25 NFP=+0.25 PLANTA CIMENTACION ESTACIONAMIENTO C6 1 1 4 4 1 1 1 1 4 4 1 1 1 1 1 1 4 4 4 4 1 1 1 1 4 4 3 3 3' 3' 3' 3' 2 2 2' 2' 2' 2' 2' 2' 2' 2' 2 2 2 2 2 2 2 2 2 2 2' 2' NFP 5 5 CORTE 4-4 5 5 D 5 5 NFP CORTE 2'-2' 5 2º PISO= 200 kg/m2 NFP NFP 4d3/8" 5 5 C6 E B F C A A C5 (.15x.50) C4 (.15x.30) C3 TIPO C1 (.25x.25) C U A D R O D E C O L U M N A S 5 4d1/2" d1/4",1a .05,5 @.10 Rto @.20 a c/EXTR. 5 d1/4",1@.05 ,5@.10 Rto @.20 a c/EXTR. 5 5 4d1/2" Rto @.20 a c/EXTR. d1/4",1a .05,5 @.10 5 5 5 8d1/2" d1/4",1a .05,5 @.10 Rto @.20 a c/EXTR. 5 5 2 FIERRO ESTRIBOS SECCION 5 6d1/2" 7.50 cm. 2.50 cm. 3.50 cm. 2.00 cm. ESCALERA=200 kg/m2 VIGAS CHATAS d5/8"= 60cm. d1/2"= 50cm. d3/8"= 40cm. LADRILLO MORTERO SOBRECIMIENTO CIMIENTO CONCRETO CICLOPEO ACERO CONCRETO ZAPATAS SOBRECARGA TRASLAPES NOTA: RECUBRIMIENTOS FALSO PISO TERRENO - LAS PAREDES INDICADAS EN LOS PLANOS DE ALIGERADOS SERAN DE LADRILLO KING-KONG, LAS PAREDES NO INDICADAS EN LOS PLANOS DE ALIGERADOS SERAN DESPUES DEL DESENCOFRADO DEL ALIGERADO RESPECTIVO. - SE RECOMIENDA TENER CUIDADO DE CONTROLAR EN LO POSIBLE CUALQUIER INFILTRACION DE AGUA QUE ALTERE EL EQUILIBRIO POTENCIAL DEL SUELO. DE LADRILLO PANDERETA Y/O KING-KONG Y SE ELEVARAN A SU ALTURA FINAL - LLENAR EL CONCRETO DE LAS COLUMNAS ENTRE MUROS DENTADOS. VIGAS PERALTADAS Y COLUMNAS 1º PISO= 200 kg/m2 CEMENTO - ARENA = 1:4 PARA ASENTADO DE LADRILLOS PRESION ADMISIBLE t = 2.0 Kg/cm2. TIPO KING-KONG A MAQUINA f'm = 35 Kg/cm2. EN GENERAL fy = 4,200 Kg/cm2. C - H = 1:10+30% PIEDRA GRANDE 6" MAX. C - H = 1:8 +25% PIEDRA MEDIANA DE 3" MAX. LOSAS ALIGERADAS Y MACIZAS 1:8 = CEMENTO HORMIGON f'c = 210 Kg/cm2. (CIMENTACION CORRIDA) ESPECIFICACIONES TECNICAS 5 2d1/2" VC-3(.15x.30) ESCALA: 1/20 5 .35 ESCALA: 1/20 VC-1(.15x.40) 5 4d1/2" 5 VC-1 VC-1 CORTE 3-3 CORTE 1-1 NFP 5 5 NFC -1.50 ELEVACION SOLADO C-H=1-12 @1/2"@.20 ESCALA: 1/25 5 NFC 5 CORTE 2-2 5 ESCALA: 1/25 5 5 5 DETALLE : CORTES CIMIENTO CORRIDO VARIABLE .60 MIN. 5 5 DETALLE DE ZAPATA TIPICO 5 5 5 5 5 VC-2 NFP 5 NFP 5 5 VARIABLE VC-1 VC-2 CORTE 3'-3' d8mm,1a .05, 5@.10 Rto @.20 a c/EXTR. 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 G 5 H H 1 1 2 3 3 2 4 4 5 6 7 9 10 11 11 5 4d1/2" 5 VC-2(.25x.40) ESCALA: 1/20 Rto @.20 a c/EXTR. d8mm,1a .05, 6@.10 Rto @.20 a c/EXTR. d8mm,1a .05, 6@.10 VC-3 5 5 Z-2 1 2 3 4 5 6 7 8 9 18 17 16 15 14 13 12 11 10 33 32 31 30 29 28 27 19 20 21 22 23 24 25 26 ESC: 1/25 DETALLE DE ESCALERA S/C=200 kg/m2 5d3/8" VE (.15x.40) .25 TIPICO 5 5 5 5d1/2" ø3/8"@0.25 (.15x.40) VE .25 TIPICO 6d3/8" 6d1/2" \A1;t=.15 TIPICO ø3/8"@0.25 .25 TIPICO \A1;t=.15 TIPICO 6d1/2" ø3/8"@0.25 VE (.15x.40) 6d1/2" 6d3/8" (.15x.40) VE ø3/8"@0.25 6d1/2" 6d3/8" .25 TIPICO Z-1 5 5 Z-2 5 5 Z-1 5 5 5 5 5 5 4d5/8" C2 (.15x.40) d8mm,1a .05,5 @.10 2@.15,Rto @.20 a c/EXTR. C3 C1 C1 C1 C1 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C4 C4 5 5 5 Rto @.20 a c/EXTR. d1/4",1a .05,5 @.10 6d1/2" 4d1/2" 5 5 d1/4",1a .05,5 @.10 Rto @.20 a c/EXTR. C7 (.25x.25) C8 (.15x.25) Rto @.20 a c/EXTR. d1/4",1a .05,5 @.10 C8 C8 C8 C8 C8 C8 C8 C8 C8 C4 C7 C5 1° TRAMO 5 5 5 CORTE 5-5 5 5 d1/4",1a .05, 4@.10 Rto @.20 a c/EXTR. 5 6d3/8" 5 VE(.15x.40) ESCALA: 1/20 5 5 5 Z-2 5 5 5 5 5 5 5 5 5 5 5 5 5 Z-3 Z-2 Z-3 Z-3 Z-3 Z-3 Z-2 Z-2 ESC: 1/50 TODAS LAS ZAPATAS IRAN A UNA PROFUNDIDAD NO MENOR DE -1.50m O HASTA ENCONTRAR SUELO NATURAL VA (.15x.20) 5d1/2" 4d1/2"+2d3/8" 6d1/2" 7d1/2" 2@.15,Rto@.25 a c/EXTR. d1/4",1a .05,4@.10 VAC d1/4",1@ .05, 5 @.10 2@.15,Rto@.20 a c/EXTR. VA1 (.15x.40) d1/4",1a .05,6@.10, Rto @.15 a c/EXTR. s s Rto @ .20 a c/EXTR. d1/4",1a .05,5@.10 d1/4",1a .05,5@.10 Rto @ .20 a c/EXTR. s VD(.25x.30) s VA2 (.25x.20) s d1/4",1a .05,5@.10 Rto @ .20 a c/EXTR. s Rto @.15a c/EXTR. d1/4",1a .05,4@.10, 4d1/2"+2d3/8" s VS1 (.15x.40) VSC d1/4",1a .05, Rto @.10a c/EXTR. VCH2 (.35x.20) s 4@.075 s Rto @.10a c/EXTR. d1/4",1a .05, VCH1 (.40x.20) 4@.075 5 5 7d1/2" 5 5 5 5 4d1/2" 5 5 4d1/2"+2d3/8" 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5d1/2"+2d3/8" 1d3/8" 5 1d3/8" 5 1d3/8" 5 A2 5 1d1/2" 17 18 16 15 20 19 VCH 1 (.40x.20) C1 C1 C1 C1 C2 C2 C2 C2 C2 C2 C2 C2 C2 C2 C4 C5 Z-3 C2 C3 VCH 1 (.40x.20) VCH 100 (.40x.20) VCH 100 (.40x.20) VA (.15x.20) VA (.15x.20) VA VA VA 2 VA 2 VCH 2 VD (.25x.30) VA 1 VA 1 VS1 (.15x.40) VA 1 VA 1 (.15x.40) VS1 (.15x.40) VS1 (.15x.40) VS1 (.15x.40) VS1 (.15x.40) VS1 (.15x.40) VS1 (.15x.40) VS1 (.15x.40) VS1 (.15x.40) VAC VA1 (.15x.40) VA1 VA1 VE (.15x.40) 5 1d1/2" 1d3/8" 1d3/8" VCH (.35x.20) 1d3/8" 1d3/8" 5 5 1d1/2" 1d1/2" 1d3/8" 1d3/8" 5 5 1d3/8" 1d3/8" 1d3/8" 1d3/8" VA3 (.25x.20) Rto @ .20 a c/EXTR. d1/4",1a .05,5@.10 5 5d1/2" s 5 VA3 (.25x.20) 1d3/8" 1d3/8" 1d3/8" 5 5 3 2 5 5 4 5 11 9 5 7 5 5 2 3 5 6 4 5 5 11 10 5 5 A H 5 5 5 B F E 5 5 A C H VA1 VA1 LLEGA SUBE VER LAMINA E-01 5 1d3/8" 1d3/8" ESCALERA CAJA DE 3d1/2" 3d1/2" 5 5 5 5 5 5 5 5 ESC:1/25 d8mm,1@.05, 4 @.10, Resto @.20 a C/Extremo VCH 100 (.40x.20) s 3d1/2" 3d1/2" 3d1/2" L/3 EMPALME POR TRASLAPE PARA VIGAS Y LOSAS m L/4 L/4 1/2" 3/8" 5/8" DETALLE DE DOBLADO DE ESTRIBOS d DE VIGA d DE COLUMNA S/E r 45° L 45° RECUBRIMIENTO ESPECIFICADO d L/3 m L/4 l l 0.35 0.35 0.25 SE EMPALMARA SOBRE LOS APOYOS SEGUN : EN ALIGERADOS Y VIGAS CHATAS EL REFUERZO INFERIOR l 3/8" 1/2" 5/8" d d L 15 10 3/8" ó 8 mm 1/4" ó 6 mm d 3 2 r L/3 L/4 0.50 0.40 0.40 0.45 0.40 0.50 0.60 0.45 0.40 VALORES PARA " m " Refuerzo superior Refuerzo inferior Cualquier h h<30cm h>30cm CORTE TIPICO LOSA ALIGERADA d1/4" a.25 (TEMPERATURA) DOBLAN .15 EN EXTREMOS 5 5 5 h=0.20m. f'c=210Kg/cm 2 5 5 5 UNION DE VIGAS 3/8" d d(m) 1/2" 5/8" 0.25 0.30 0.20 d d d S/E

Language	Spanish
Drawing Type	Full Project
Category	House
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Other
Measurement Units	Imperial
Footprint Area
Building Features	Garden / Park, Parking
