Structure Transition Detail Mv DWG Plan for AutoCAD

Structure Transition Detail Mv DWG Plan for AutoCAD

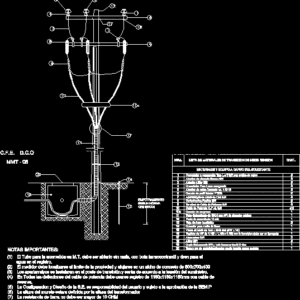

Drawing with a transition aerial specifications underground with BOM, for CFE plans.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

The pipe for the rush in m.t. Must be opened without thermo-shallow boot drain for the, Water on the log., The meter should be located at the limit of the property to be housed in a concrete niche, The outriggers will be installed in the transition pole will be according to the supply voltage., important notes:, In all deflections of the power cable must be used wiring register of, reservation., The layout of the s.e. It is the responsability of the user subject to the approval of the semip, The height of the wall is defined by the height of the transformer, The ground resistance must not be greater than ohm, The system neutral is not grounded in the attached base, The down wire of the meter rod the ground rod must be minimum cu awg gauge., Failure to comply with this standard will cause c.f.e. Do not provide in service., Embedment, According to norm, Cfe, Power line connector, Bare copper wire no. Awg, Cross section of tubular profile, Zinc oxide arresters, Num., List of medium voltage transition materials, Materials equipment of the applicant, Type compression connector with copper stirrup, Soft aluminum wire, Pin isolator, Galvanized pipe with minimum diameter mm, Mts concrete pole, Stainless steel strap, Ground rod connector, Fuse cutouts, Power cable terminal, Xlp power cable to, Log of mt of mm the transition should be on bench., clamp, pin, Copleed galvanized boot heat shrink wires, Mm ground rod, Top ring of polymer material medium voltage according to registration, Cant, Medium voltage transition structure detail, C.f.e. Dc, Mmt, Neoprene crosspiece

Raw text data extracted from CAD file:

(1) El Tubo para la acometida en M.T. debe ser abierto sin mufa, con bota termocontractil y dren para el agua en el registro. (2) El medidor debe localizarse al limite de la propiedad y alojarse en un nicho de concreto de 600x700x400 (3) Los apartarralyos se instalaran en el poste de transición y serán de acuerdo a la tensión del suministro. NOTAS IMPORTANTES: (4) En Todas las deflexiones del cable de potencia debe usarse registro de 1160x1160x1160mm con cable de reserva. (5) La Configuracion y Diseño de la S.E. es responsablidad del usuario y sujeto a la aprobación de la SEMIP (6) La altura del murete estara definida por la altura del transformador (7) La resistencia de tierra no debe ser mayor de 10 OHM (8) El Neutro del sistema no se aterriza en la base (ver anexo 1) (9) El Cable bajante de la varilla del medidor a la varilla de tierra debe ser calibre Cu 1/0 AWG mínimo. (10) La Falta de cumplimiento de esta norma será motivo que C.F.E. no proporcione en servicio. EMPOTRAMIENTO SEGUN NORMA CFE 030004 2 1 3 4 5 6 6 7 8 9 10 12 13 14 15 16 17 18 17 11 20 1 2 3 Conectador Para Linea energizada Alambre de cobre Desnudo no. 4 AWG Cruceta de perfil tubular PT200 Apartarrayos de Oxido de Zinc S/R NUM. LISTA DE MATERIALES DE TRANSICION DE MEDIA TENSION MATERIALES Y EQUIPO A CARGO DEL SOLICITANTE Conectador a compresión Tipo L o T S/R con estribo de cobre Alambre de aluminio Suave AS4 Aislador Alfiler S/R 4 5 6 7 8 9 10 Tubo Galvanizado de 101.6 mm (4") de diametro minimo Poste de concreto de 12 mts Fleje de Aero inoxidable Conector para varilla de tierra Cortacircuitos Fusible S/R Terminal de Cable de Potencia S/R Cable de Potencia XLP AL S/R 11 12 13 14 15 Registro de MT de 1,160 x 1,160 x 1,160 mm la transicion debe ser en banqueta. Abrazadera S/R Alfiler S/R Cople Galvanizado S/R y bota termocontractil 3 vias Varilla de tierra de 15.8 x 3048 mm (5/8" x 10') 16 17 18 19 Tapa y aro de material polimerico media tensión segun registro 20 3 3 3 3 2 3 3 3 s/d 2 3 2 1 1 1 1 1 3 1 1 CANT. DETALLE DE ESTRUCTURA DE TRANSICION DE MEDIA TENSION C.F.E. D.C.O MMT - 08 10a 10a Cruzeta de neopreno 1

Language	Spanish
Drawing Type	Plan
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Steel
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	aerial, alta tensão, autocad, beleuchtung, bom, cfe, DETAIL, détails électriques, detalhes elétrica, drawing, DWG, electrical details, electricity, elektrische details, haute tension, high tension, hochspannung, iluminação, kläranlage, l'éclairage, la tour, lighting, medium voltage, mv, plan, plans, rush, specifications, structure, torre, tower, transition, treatment plant, turm, underground
