Symbology Hydraulic DWG Block for AutoCAD

Symbology Hydraulic DWG Block for AutoCAD

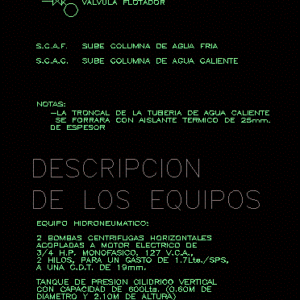

Hydraulic Basic Symbology of installation

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

of the teams, description, Circulating pumps with motor, Thermal insulation of thickness, This tank will be covered with, Horizontal of diam. from, Cylindrical storage tank, capacity of, Hot water boiler with, Hot water equipment:, Level in the tank, For the control motors, Of the thermal protection, Simultaneous alternating operation, Control board for the, An air compressor of, Diameter of, With capacity of, Vertical cylindrical pressure tank, A. from, For an expense of, ., Coupled electric motor, Horizontal centrifugal pumps, Hydropneumatic equipment:, Notes:, Symbology, S.c.a.f., S.c.a.c., Will be covered with, Trunk of the hot water pipe, of thickness, Column of hot water rises, Column of cold water rises, gate valve, Hot water pipe, Cold water pipe, Float valve, Chek valve, Circulating pump, water meter, Amnguage key, Globe valve

Raw text data extracted from CAD file:

DE LOS EQUIPOS DESCRIPCION 1/6H.P. 2 BOMBAS CIRCULADORAS CON MOTOR DE AISLAMIENTO TERMICO DE 51mm DE ESPESOR LARGO, ESTE TANQUE SE FORRARA CON HORIZONTAL DE 0.60M DE DIAM. Y 1.50M DE TANQUE DE ALMACENAMIENTO CILINDRICO CAPACIDAD DE 350Lts./HORA A 60°C CALDERA DE AGUA CALIENTE CON EQUIPO DE AGUA CALIENTE: NIVEL EN LA CISTERNA PARA LOS MOTORES Y CONTROL DE DE LAS BOMBAS, CON PROTECCION TERMICA OPERACION ALTERNADA O SIMULTANEA 1 TABLERO DE CONTROL PARA LA UN COMPRESOR DE AIRE DE 1/3H.P. DIAMETRO Y 2.10M DE ALTURA) CON CAPACIDAD DE 600Lts. (0.60M DE TANQUE DE PRESION CILIDRICO VERTICAL A UNA C.D.T. DE 19mm. 2 HILOS, PARA UN GASTO DE 1.7Lts./SPS, 3/4 H.P. MONOFASICO, 127 V.C.A., ACOPLADAS A MOTOR ELECTRICO DE 2 BOMBAS CENTRIFUGAS HORIZONTALES EQUIPO HIDRONEUMATICO: NOTAS: SIMBOLOGIA S.C.A.F. S.C.A.C. SE FORRARA CON AISLANTE TERMICO DE 25mm. -LA TRONCAL DE LA TUBERIA DE AGUA CALIENTE DE ESPESOR SUBE COLUMNA DE AGUA CALIENTE SUBE COLUMNA DE AGUA FRIA VALVULA DE COMPUERTA TUBERIA DE AGUA CALIENTE TUBERIA PARA AGUA FRIA VALVULA FLOTADOR VALVULA DE CHEK BOMBA CIRCULADORA MEDIDOR DE AGUA LLAVE DE AMNGUERA VALVULA DE GLOBO

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Car Parking Lot
Tags	autocad, basic, block, DWG, einrichtungen, facilities, gas, gesundheit, hydraulic, installation, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, provision, symbology, wasser bestimmung, water
