Tanquilla Sink Window On Road DWG Block for AutoCAD

Tanquilla Sink Window On Road DWG Block for AutoCAD

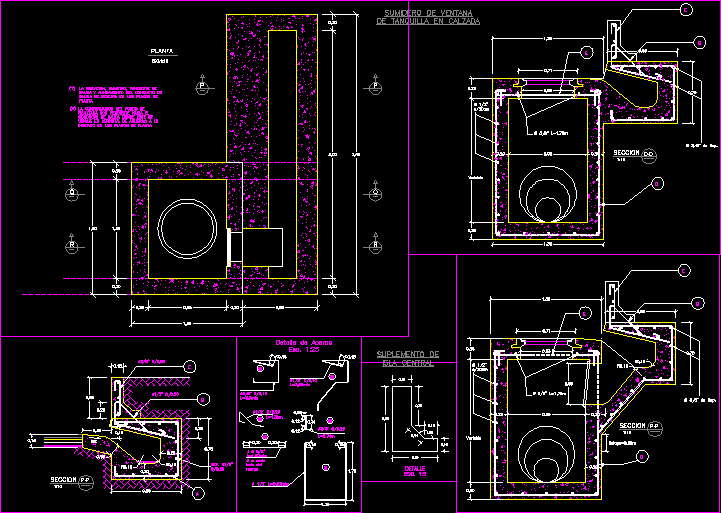

TANQUILLA OR SPECIAL DESIGN TRAGANT. THE WINDOW AND THE CHANEL IS LOCATED AT THE AREAOF THE SIDEWALK ;AS NORMAL ; BUT THE TANQUILLA IS LOCATED ON THE ROAD OR FLOOR AREA THAT USUALLY ARE OCCUPIED BY OTHER PUBLIC SERVICES

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Xxx, Xxx, variable, variable, section, Window sink, Rep., Detail esc., section, Each side of the frame, Of rep., The output slope of the outlet duct is indicated in the floor plans, The conformation of the bottom will be realized with slope towards the conduit of exit where this one is located in agreement finally indicated in the plans of plant, Detail of esc., section, variable, Of rep., variable, plant, Tanquilla window sink in driveway, Central island supplement

Raw text data extracted from CAD file:

XXX 1:X XXX XXX 1,60 1,20 0,20 0,20 3,40 3,00 0,20 0,20 1,35 0,95 0,20 0,20 0,90 0,10 0,10 0,30 0,15 0,50 0,35 0,14 135° 0,95 0,25 0,50 0,85 0,75 1,35 0,63 0,71 0,15 0,50 0,85 0,20 0,75 0,15 Solape=0,20m 1,35 0,20 Variable 0,25 0,95 0,85 0,75 1,35 0,63 0,71 0,15 0,15 0,35 0,20 0,20 0,20 0,20 0,20 Variable 0,25 0,15 0,15 0,15 1,76 1,25 0,20 0,20 0,15 0,05 0,12 0,12 0,41 R0,10 R0,10 0,25 0,20 R0,10 R0,10 0,25 1:10 SECCION R-R SUMIDERO DE VENTANA REP. d3/8" C/0,20 d5/8" C/0,10 L=3,0mts d1/2" C/0,20 d1/2" C/0,20 \U+22053/8" C/0,20 d3/8" C/0,20 5 5 5 5 5 5 5 5 5 5 5 5 5 A B C 5 5 5 5 5 5 5 DETALLE ESC. 1:5 5 d1/2" C/0,10 L=3,65mts R R P P 1:10 SECCION P-P 5 5 5 5 5 5 5 5 5 5 5 5 5 5 4 d 5/8" L=1,50mts E B C D E 2 a cada lado del marco \A1;Ø 5/8" L=1,75m \A1;Ø 3/8" de Rep. LA UBICACION, DIAMETRO, PENDIENTE DE SALIDA Y ALINEAMIENTO DEL CONDUCTO DE SALIDA SE INDICARA EN LOS PLANOS DE PLANTA (1) LA CONFORMACION DEL FONDO SE REALIZARA CON PENDIENTE HACIA EL CONDUCTO DE SALIDA DONDE ESTE SE UBIQUE EN DEFINITIVA DE ACUERDO A LO INDICADO EN LOS PLANOS DE PLANTA (2) \W0.78482; Detalle de Aceros \W3.90387; Esc. 1:25 Q Q Solape=0,20m 1:10 SECCION Q-Q 5 5 Variable 5 5 5 5 5 5 5 B C E \A1;Ø 5/8" L=1,75m \A1;Ø 3/8" de Rep. 8% 5 5 5 5 5 \A1;Ø 1/2" c/20cm 5 5 D 5 Variable 5 \A1;Ø 1/2" c/20cm PLANTA ESC.1:10 d 1/2" L=5,07mts 5 5 5 5 5 5 5 A D C B F 5 5 5 5 5 5 5 5 5 5 5 5 L=1,30m L=0,74m SUMIDERO DE VENTANA DE TANQUILLA EN CALZADA SUPLEMENTO DE ISLA CENTRAL
