Toilet – Bacia DWG Section for AutoCAD

Toilet – Bacia DWG Section for AutoCAD

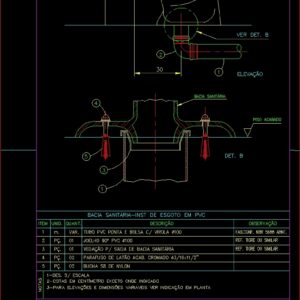

Toilet – Details in plant – Section – Details installation Bacia conventional

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

cvrd, leaf:, rev .:, cvrd:, minerconsult:, Variable dimensions, scale, in centimeter except where indicated, grades, drain basin in pvc, sanitary bowl, det., finished floor, see det., high, finished brass screw. chrome, quant., var., Praça., Praça., item, Items., pvc pipe tip ferrule bag, pvc knee, sealing of sanitary basin, nylon bushing, description, ref. tiger or similar, fab.conf. nbr abnt., Note

Raw text data extracted from CAD file:

CVRD FOLHA: REV.: N° CVRD: N° MINERCONSULT: 3-PARA ELEVAÇÕES E DIMENSÕES VARIAVEIS VER INDICAÇÃO EM PLANTA 1-DES. S/ ESCALA 2-COTAS EM CENTÍMETRO EXCETO ONDE INDICADO NOTAS BACIA SANITÁRIA-INST DE ESGOTO EM PVC 1 3 5 4 30 2 BACIA SANITÁRIA DET. B PISO ACABADO VER DET. B ELEVAÇÃO 1 PARAFUSO DE LATÃO ACAB. CROMADO Ø3/16x11/2'' 01 QUANT. VAR. 01 02 02 PÇ. 5 m. PÇ. PÇ. PÇ. 4 3 2 1 ITEM UNID. TUBO PVC PONTA E BOLSA C/ VIROLA Ø100 JOELHO 90º PVC Ø100 VEDAÇÃO P/ SAIDA DE BACIA SANITÁRIA BUCHA S8 DE NYLON DESCRIÇÃO REF. TIGRE OU SIMILAR REF. TIGRE OU SIMILAR FAB.CONF. NBR 5688 ABNT. OBSERVAÇÃO

Language	Portuguese
Drawing Type	Section
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, conventional, details, DWG, einrichtungen, facilities, gas, gesundheit, installation, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, plant, provision, section, toilet, wasser bestimmung, water
