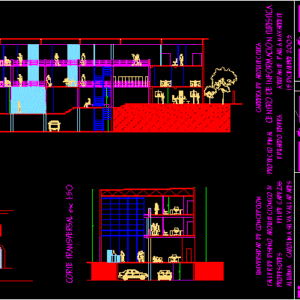

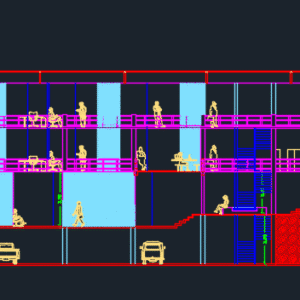

Tourist Center 2D DWG Design Section for AutoCAD
ADVERTISEMENT
ADVERTISEMENT

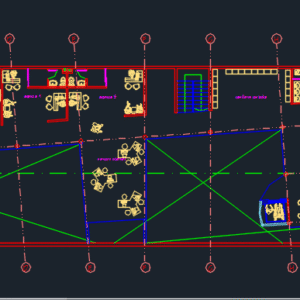

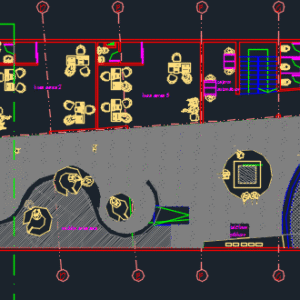

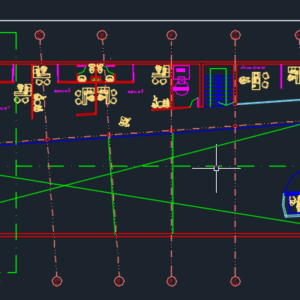

This Tourist Center is a three-level building with a basement, and has a parking for eight vehicles and a service area for staff, in the first level are the administrative offices and bathrooms, the central square, and the center of information and communication, in the second level are the offices of travel agency, the internet center, and the bathrooms. At the third level are administrative offices, bathrooms and the tourism management.
| Language | Spanish |
| Drawing Type | Section |
| Category | Hotel, Restaurants & Recreation |
| Additional Screenshots |
     |
| File Type | dwg, zip |
| Materials | Concrete, Steel |
| Measurement Units | Metric |
| Footprint Area | 500 - 999 m² (5382.0 - 10753.1 ft²) |
| Building Features | Elevator, Car Parking Lot |
| Tags | 2d, autocad, bathrooms, center, Design, DWG, elevations, inn, office, parking, plants, resort, section, sections, tourist, villa |
