Type 5 Stainless Steel Bracket Detail for heat Exchanger

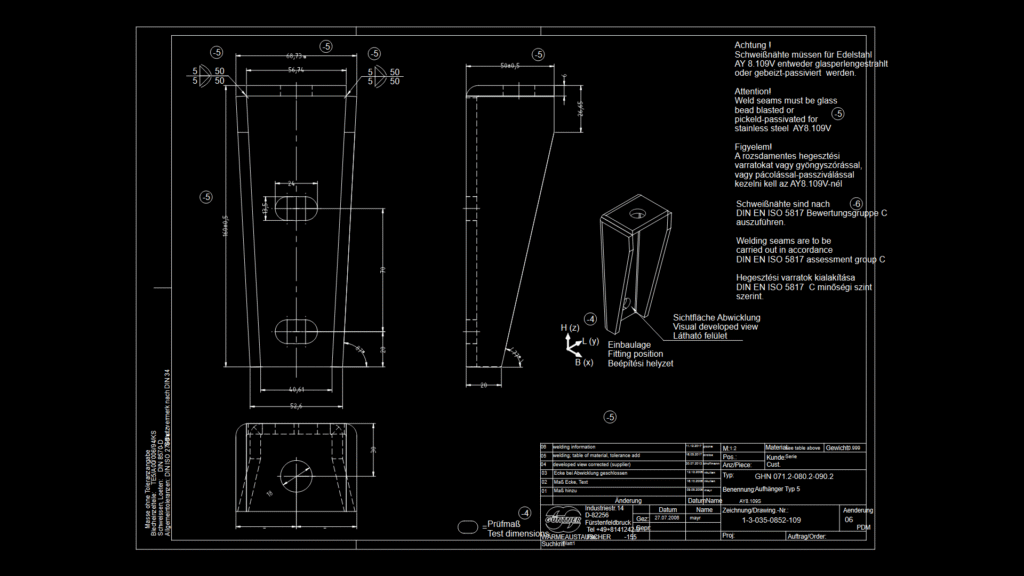

Engineering detail drawing of an ‘Aufhänger Typ 5’ (Type 5 Bracket) designed for GHN 071.2-080.2-090.2 heat exchanger systems. This component is fabricated from AY8.109V stainless steel with specific welding requirements. Key dimensions include 160±0.5mm length, 70mm height, with mounting slots of 13.5×24mm. The bracket features 18mm diameter center hole and critical angular elements (87° and 77°).

Welding Requirements:
– All welds must conform to DIN EN ISO 5817 Assessment Group C standards
– Stainless steel welds require either glass bead blasting or pickling-passivation treatment
– Multiple inspection parameters with test dimensions in x, y, z coordinates

The drawing includes multi-language instructions (German, English, Hungarian) and specifies a mounting position with visual developed view. Manufacturing tolerances follow DIN ISO 2768-v general standards, with sheet metal components conforming to TE5/A00/006/94/KS specifications.
