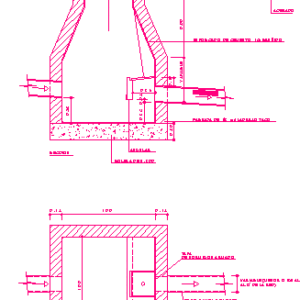

Camera with siphon – Plant – Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

section, plant, Siphon casing, Reinforced concrete, Semigroup outlet tube, top, Variable equal, To the, maximum, Cast grout, Brick factory, Sole of, angular, variable, steely

Raw text data extracted from CAD file:

SECCION PLANTA 0,32 0,14 ARQUETA SIFONICA DE HORMIGON ARMADO TUBO SALIDA SEMIGRES 1,00 1,00 0,14 TAPA VARIABLE (MENOR O IGUAL AL O DE LA RED) MAXIMO 2,00 m PTE.mín.2'5% ENFOSCADO DE CEMENTO 1:3 BRUÑIDO FABRICA DE 1/2 pié LADRILLO TACO SOLERA DE H-200 ANGULAR 0,60 ESC.:1/20 0,10 0,20 0,04 0,25 0,26 VARIABLE 0,80 ACERADO

Language	Spanish
Drawing Type	Section
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
