Concentration Of Electric Meters DWG Block for AutoCAD

Concentration Of Electric Meters DWG Block for AutoCAD

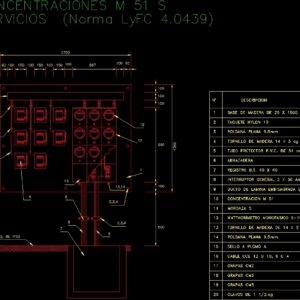

Concentration of electric meters for department buildings or condominiums

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Cce cable, Cg wood screw, Monophase watthourmeter, Hinged sheet duct, General switch amps, Protective tube p.v.c. Mm diameter, Cg wood screw, Wooden base, Nails, Staples, Staples, Lead seal, Flat pulley, concentration, jaw, B.t., clamp, Flat pulley, Nylon cap, description, Lyfc services, Concentrations, Of floor

Raw text data extracted from CAD file:

CABLE CCE 12 O 10, 6 O 4 TORNILLO DE MADERA DE 14 X 2 cg WATTHORIMETRO MONOFASICO S-100 DUCTO DE LAMINA EMBISAGRADA DE 60 X 60mm INTERRUPTOR GENERAL 2 X 30 AMPERES TUBO PROTECTOR P.V.C. DE 51 mm DE DIAMETRO TORNILLO DE MADERA 14 X 3 cg BASE DE MADERA DE 25 X 1500 X 1700mm 20 19 18 CLAVOS DE 1 1/2.cg GRAPAS CM5 GRAPAS CM3 13 17 16 15 14 12 11 10 9 GRAPAS CM2 SELLO A PLOMO A ROLDANA PLANA 9.5mm CONCENTRACION M 51 MORDAZA S 8 7 6 5 4 3 2 1 REGISTRO B.T. 60 X 60 ABRAZADERA ROLDANA PLANA 9.5mm TAQUETE NYLON 10 N° DESCRIPCION 8 SERVICIOS (Norma LyFC 4.0439) 3 CONCENTRACIONES M 51 S \A1;8 \A1;NIVEL DE PISO 100 200 100 200 200 \A1;18,20 \A1;19,20 \A1;19,20 92 \A1;9 150 100 100 100 960 100 500 \A1;13,14 \A1;5 \A1;5 \A1;7 \A1;6 \A1;2,3,4 \A1;2,3,4 \A1;15 1 \A1;12 10 1360 100 100 100 150 150 100 567 \A1;1700 92 100
