Department Building DWG Full Project for AutoCAD

Department Building DWG Full Project for AutoCAD

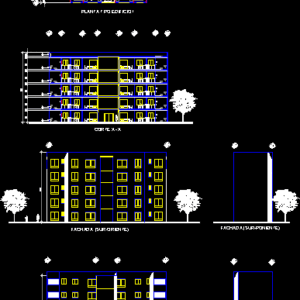

Plans departament projects; include plants;elevations and section of the building.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

ipn, master bedroom, plant type building, cut, facade, main facade, facade, master bedroom, main bathroom, common bathroom, bedroom, kitchen, laundry room, service yard, dinning room, living room, ironing, dinning room, kitchen, laundry room, ironing, living room, bedroom, common bathroom, main bathroom, service yard, main access, lobby, access

Raw text data extracted from CAD file:

IPN E S I A N 0.90 2.83 2.21 6.37 5.10 6.37 2.83 2.06 27.78 1.02 0.88 1.68 2.78 2.78 1.79 2.50 1.08 8.95 0.30 2.80 0.30 2.80 0.30 2.80 0.30 2.80 0.30 16.40 2.80 16.40 15.50 RECAMARA PRINCIPAL 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 A B B´ C D E F G G´ H 1 2 2´ 3 4 5 6 5 A B C D E F G´ H X X´ PLANTA TIPO EDIFICIO 1 CORTE X - X´ 5 A H 5 A D E H 1 6 6 1 FACHADA (SUR-ORIENTE) FACHADA PRINCIPAL (NOR-PONIENTE) FACHADA (SUR-PONIENTE) FACHADA (ORIENTE) RECAMARA PRINCIPAL BAÑO PRINCIPAL BAÑO COMÚN RECAMARA 1 COCINA CUARTO DE LAVADO PATIO DE SERVICIO COMEDOR SALA Y PLANCHADO COMEDOR COCINA CUARTO DE LAVADO Y PLANCHADO SALA RECAMARA 1 BAÑO COMÚN BAÑO PRINCIPAL PATIO DE SERVICIO 5 5 5 5 5 5 5 5 5 5 S ACCESO PRINCIPAL VESTIBULO ACCESO ACCESO N.P.T.+0.20 N.P.T.+0.20 N.P.T.+0.20 N.P.T.+0.20 N.P.T.+3.30 N.P.T.+6.40 N.P.T.+9.50 N.P.T.+12.60 N.P.T.+15.70 5 S

Language	Spanish
Drawing Type	Full Project
Category	Condominium
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features	Deck / Patio
Tags	apartment, autocad, building, condo, departament, department, DWG, eigenverantwortung, Family, full, group home, grup, include, mehrfamilien, multi, multifamily housing, ownership, partnerschaft, partnership, plans, Project, projects, section
