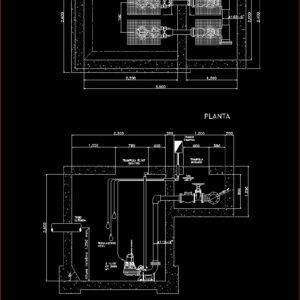

Equip of pumping – Plant – Section

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail of, pumping equipment, minimum mm., regulators, flygt, level, flygt trapdoor, tube, arrival, tube, cable grommet, trapdoor, plant, picture, electric

Raw text data extracted from CAD file:

DETALLE DE EQUIPO DE BOMBEO \A1;Altura mínima 1.250 mm. REGULADORES \A1;ø110-4" ALZADO-SECCION \A1;60° 2 FLYGT CP 3085 MT NIVEL TRAMPILLA FLYGT 580x785 \A1;2,200 \A1;780 \A1;2,500 TUBO LLEGADA \A1;1,020 \A1;2,200 \A1;400 Tubo pasacables ø63-2" TRAMPILLA 600x600 \A1;600 \A1;ø160-6" \A1;1,200 \A1;800 \A1;380 \A1;1,200 PLANTA \A1;200 Cuadro Electrico \A1;1,200 \A1;3,600 \A1;200 \A1;2,800 \A1;2,600 \A1;700 \A1;600 \A1;580 \A1;600 \A1;785 \A1;ø160-6" \A1;2,400 \A1;2,000
