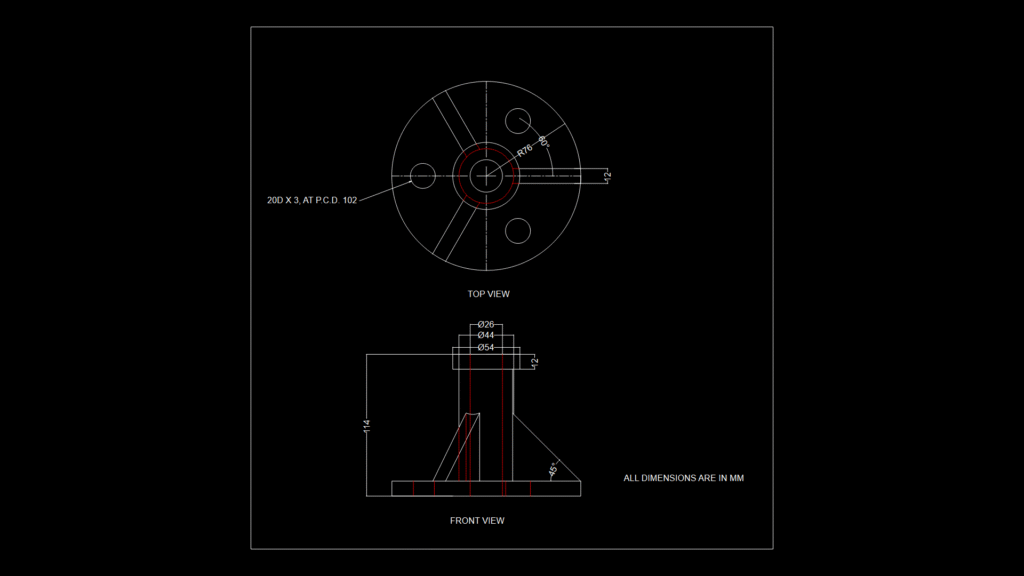

Flanged Mounting Bracket detail with Ribbed Support and Hole Pattern

This mechanical detail drawing depicts a flanged mounting bracket with an integrated ribbed support structure. This component features a circular top flange with multiple hole patterns – a central Ø26mm hole with concentric Ø44mm and Ø54mm features, along with three peripheral mounting holes arranged in a circular pattern at a pitch circle diameter (PCD) of 102mm. The mounting holes are specified as 20D x 3, indicating three 20mm diameter holes. The front view reveals a reinforcement rib at a 45° angle that provides structural support between the vertical column and the base flange. The overall height of the component is 114mm, with critical dimensions clearly labeled in millimeters. The reinforced design efficiently transfers loads while minimizing material usage, making it suitable for applications requiring both stability and weight optimization. The drawing includes both top and front orthographic views for comprehensive manufacturing guidance.
