Pipes Support DWG Block for AutoCAD

Pipes Support DWG Block for AutoCAD

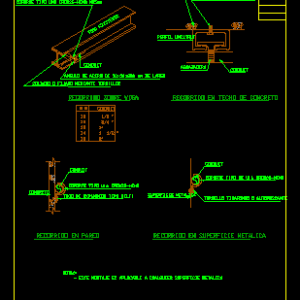

Support for pipe conduit in concrete roof

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

tag. do not, conduit, one type support, soldier fixed by screws, steel angle mm long, conduit, existing beam, concrete, hilti type expansion plug, unistrut profile, clamp, conduit, hilti type expansion plug, type support, conduit, concrete, metal surface, type support, conduit, travel on beam, travel on concrete roof, travel on wall, travel on metal surface, notes:, support for conduit, screw self-tapping screw, this assembly is applicable to any metal surface

Raw text data extracted from CAD file:

TAG. No * * CONDUIT 10 11 12 14 15 1/2 " 3/4 " 1" 1 1/2 " 2" SOPORTE TIPO UNA CROUSE-HIND MW5** SOLDADO O FIJADO MEDIANTE TORNILLOS ANGULO DE ACERO DE 50x50x200 mm DE LARGO CONDUIT VIGA EXISTENTE CONCRETO TACO DE EXPANSION TIPO HILTI PERFIL UNISTRUT ABRAZADERA CONDUIT TACO DE EXPANSION TIPO HILTI SOPORTE TIPO U|A CROUSE-HIND CONDUIT CONCRETO SUPERFICIE METALICA SOPORTE TIPO DE U|A CROUSE-HIND CONDUIT RECORRIDO SOBRE VIGA RECORRIDO EN TECHO DE CONCRETO RECORRIDO EN PARED RECORRIDO EN SUPERFICIE METALICA NOTAS: SOPORTE PARA CONDUIT TORNILLO TIRAFONDO O AUTOROSCANTE - ESTE MONTAJE ES APLICABLE A CUALQUIER SUPERFICIE METALICA

Language	Spanish
Drawing Type	Block
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, concrete, conduit, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, le gaz, machine room, maquinas, maschinenrauminstallations, pipe, pipes, provision, roof, support, wasser bestimmung, water
