Roof Detail DWG Section for AutoCAD

Roof Detail DWG Section for AutoCAD

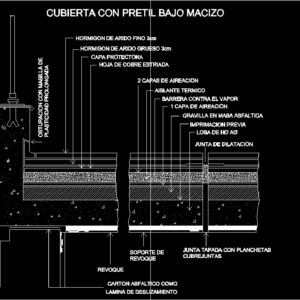

Roof with railing under solid – Section with technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

covered with solid low parapet, fine arid concrete, coarse aggregate concrete, protective layer, fluted copper sheet, sealing with putty, prolonged plasticity, aeration layers, thermal insulation, vapor barrier, aeration layer, gravel in asphalt mass, previous imprint, slab of hd ad, dilatation meeting, gasket covered with planchets, joint covers, support of, plaster, asphalt cardboard, sliding sheet

Raw text data extracted from CAD file:

CUBIERTA CON PRETIL BAJO MACIZO HORMIGON DE ARIDO FINO 3cm HORMIGON DE ARIDO GRUESO 3cm CAPA PROTECTORA HOJA DE COBRE ESTRIADA OBTURACION CON MASILLA DE PLASTICIDAD PROLONGADA 2 CAPAS DE AIREACION AISLANTE TERMICO BARRERA CONTRA EL VAPOR 1 CAPA DE AIREACION GRAVILLA EN MASA ASFALTICA IMPRIMACION PREVIA LOSA DE Hd Ad JUNTA DE DILATACION JUNTA TAPADA CON PLANCHETAS CUBREJUNTAS SOPORTE DE REVOQUE REVOQUE CARTON ASFALTICO COMO LAMINA DE DESLIZAMIENTO

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Plastic
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, cover, dach, DETAIL, DWG, hangar, lagerschuppen, railing, roof, section, shed, solid, specifications, structure, technical, terrasse, toit
